TEI-TJ90
Turbojet Engine
TEI develops turbojet and turboprop engines to meet the gas turbine need of competitive, innovative, high-tech Unmanned Aerial Vehicles (UAV) which are anticipated to be released to the domestic market first and to the international market in the long-term. Accordingly, R&D studies continue at TEI since 2004. In consequence of these activities, TEI-TJ90 turbojet engine has been developed. Inspections and testing of these engines are carried out by means of electronic control units developed by using fully domestic facilities.
In January 2011, we initiated studies to develop a turbojet engine that provides a higher thrust compared to the TEI-TJ35 engines. As part of the project carried out with the support of TEYDEB (Technology and Innovation Grant Programs), the initial flight test was performed on June 5, 2013 and the engine development tests are still in progress.

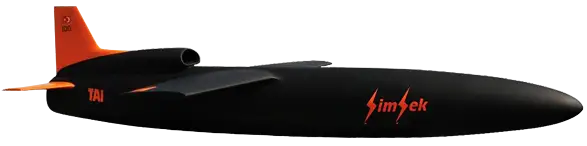

TEI-TJ90 performed its first flight with Simsek platform,
developed by TAI,
on June 7, 2017.
Outstanding specifications of TEI-TJ90 engine
Direct kerosene start
Electric start
EMI (Electromagnetic Interference) & EMC
(Electromagnetic Compatibility) compliance
Resistance to catapult-loads
ECU with ground station data link
Compliance to military standarts
Technical Specifications
- Maximum Thrust: 390±10/90 (N/lbf)
- Specific Fuel Consumption: 0.17/1.7 (kg/N.h)/(lb/lbf.h)
- Max. Speed: 96,000 RPM
- Dry Weight: 4.75/10.5 (kg/lb)
- Dry Weight with ECU: 6.95/15.3 (kg/lb)
- Length: 380/14.9 (mm/in)
- Diameter: 153.5/6 (mm/in)
- Maintenance Interval: 25+ (h)
